The Vish HVR3700001004FR500 is a high-precision metal film resistor from Phoenix Passive Components. It delivers reliable performance in demanding electronics applications. Designed for stability and durability, this resistor supports engineers in achieving consistent circuit behavior. With its robust ceramic case and axial lead configuration, it suits both prototyping and production environments. Its wide temperature range ensures dependable operation across various industrial and consumer electronics applications. In this comprehensive article, we'll delve into the intricacies of the HVR3700001004FR500, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.

HVR3700001004FR500's Overview

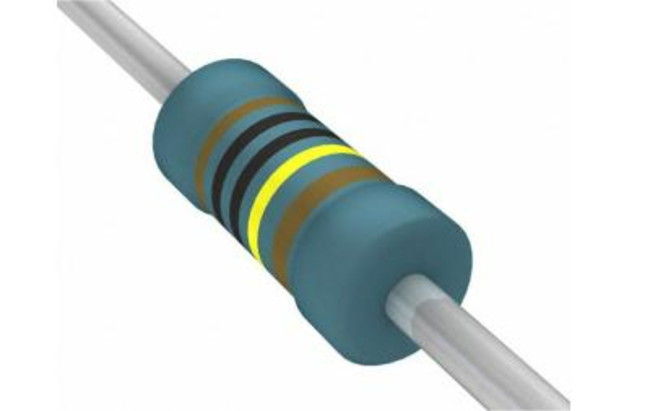

The HVR3700001004FR500 is a 1M Ohm, 0.5W metal film resistor with ±1% tolerance. It is constructed on a ceramic axial body. This resistor is designed to offer precise resistance and minimal variation over temperature. It is widely used in high-voltage circuits due to its 3500V DC maximum rating. The product emphasizes quality, consistency, and long-term reliability for sensitive electronics systems.

Key Features

Let's delve into the standout features that make the HVR3700001004FR500 a standout in the world of electronics:

· The HVR3700001004FR500 resistor offers 1MΩ resistance.

· It provides a tolerance of 1% for precise electrical performance.

· The component supports a maximum voltage of 3500V DC or 2500V RMS.

· It has a power rating of 0.5 watts.

· The resistor is made with metal film technology for stability.

· It operates between -55°C and 155°C.

· It features a temperature coefficient of ±200ppm/°C.

· The resistor is housed in a ceramic cylindrical case.

· It uses an axial termination style with two terminals.

· It comes packaged in tape and reel for automated assembly.

· The product dimensions are 10mm length and 4mm diameter.

· It weighs 0.5 grams and has a lead diameter of 0.7mm.
