In modern electronics design, reliable capacitors play a crucial role in circuit stability and performance. The PANASONIC EEE-1EA100WR is a high-quality surface-mount electrolytic capacitor engineered for automotive and industrial applications. Its compact size and robust specifications make it a preferred choice for engineers seeking durable components that meet stringent standards. In this comprehensive article, we'll delve into the intricacies of the EEE-1EA100WR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.

EEE-1EA100WR's Overview

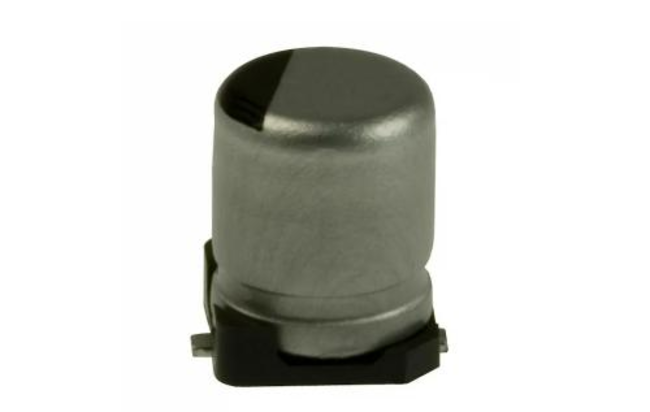

The EEE-1EA100WR is a compact electrolytic capacitor designed by Panasonic. It delivers a capacitance of 10uF and operates at a voltage rating of 25VDC. This capacitor is surface-mountable, making it ideal for automated assembly processes in high-density circuit boards. It adheres to AEC-Q200 automotive standards, ensuring high reliability in demanding environments.

Key Features

Let's delve into the standout features that make the EEE-1EA100WR a standout in the world of electronics:

· The capacitor has a capacitance value of 10uF, providing stable energy storage for circuits.

· It supports a voltage of 25VDC, suitable for low- to medium-voltage applications.

· It comes with a tolerance of 20%, allowing for predictable performance under varying conditions.

· The IR current is 0.022A, ensuring minimal leakage during operation.

· Its IL is 3uA at 2 minutes, demonstrating excellent insulation properties.

· The component has a lifetime of 1000 hours at 85°C, guaranteeing reliability over long-term usage.

· It is a polarized electrolytic capacitor, making proper orientation critical during installation.

· The cylindrical construction provides mechanical stability and thermal efficiency.

· Designed for surface-mounting, it supports automated PCB assembly lines.

· The capacitor is available in tape and reel packaging, facilitating bulk production needs.
